27MG

EVIDENT

27MG

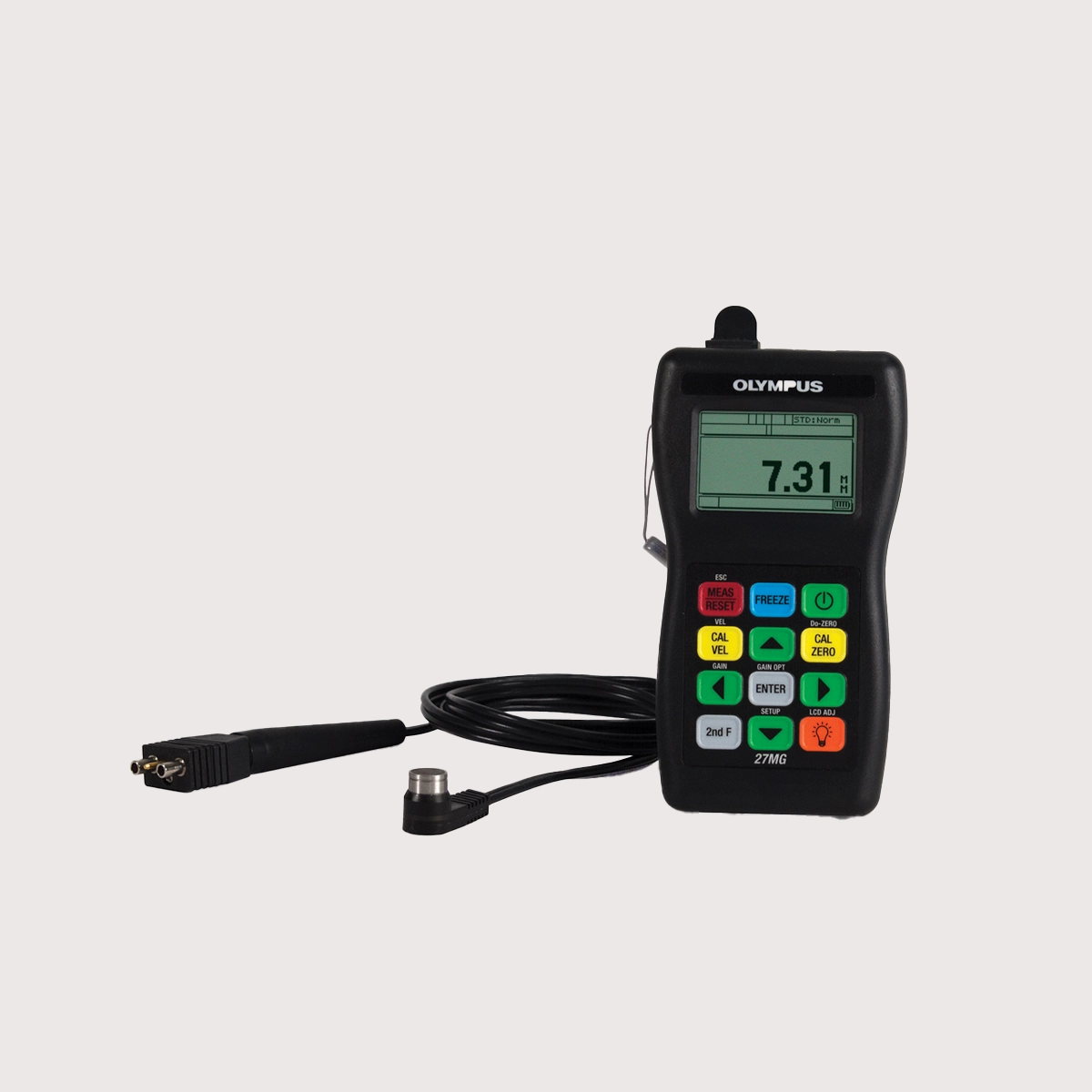

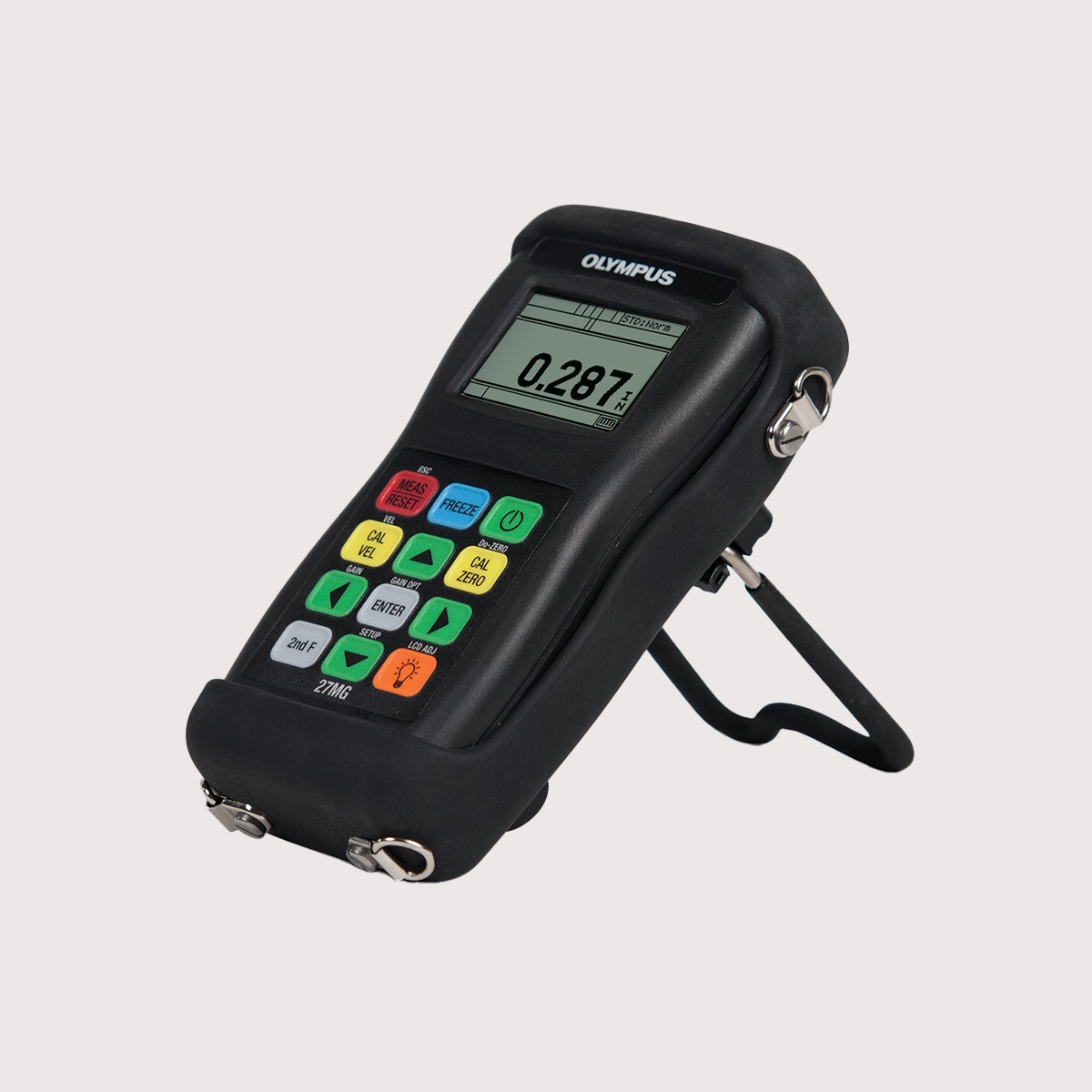

The 27MG is an ultrasonic thickness gauge designed to make accurate single-sided measurements on metal components and piping subject to corrosion or internal erosion. Lightweight, durable and ergonomic, it is designed to provide easy and intuitive one-handed operation, making it ideal for quick and efficient inspections even in complex industrial environments.

Download brochure
Contact us
01
Measurement mode with dual-element transducer
Time interval between the accuracy delay following the excitation pulse and the first echo
02
Thickness range
0.50 mm to 635 mm (0.020 in. to 25.0 in.) depending on material, transducer, surface condition, and temperature
03
Range of the propagation speed of the ultrasonic wave in the material
0.508 mm/μs to 18.699 mm/μs (0.020 in./μs to 0.7362 in./μs)
04
Resolution (selectable)
Low: 0.1 mm (0.01 in.) Standard: 0.01 mm (0.001 in.)
05
Transducer frequency range
2.25 MHz to 10 MHzMHz (-3 dB)

Highlights

Why choose 27MG?

01

Ultrasonic thickness gauge

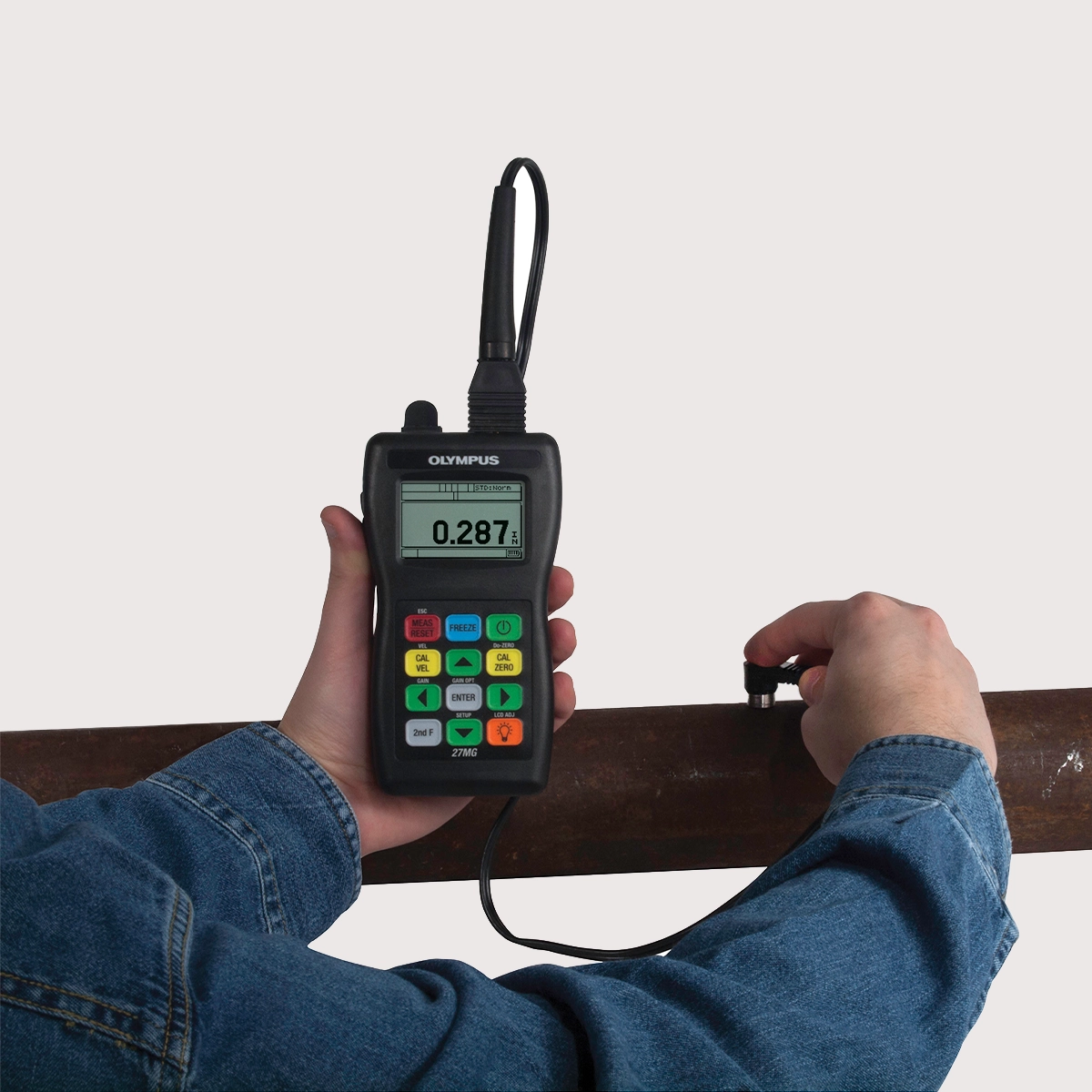

The Olympus 27MG is a compact and inexpensive ultrasonic thickness gauge designed to make accurate single-sided measurements on pipes, tanks, and other metal structures subject to corrosion or internal erosion. Con un peso di soli 340 grammi, è stato progettato per un utilizzo ergonomico e palmare, offrendo un funzionamento intuitivo e pratico. Nonostante le dimensioni ridotte, integra funzionalità avanzate di misura, sfruttando le stesse tecnologie dei misuratori di spessore più sofisticati di Olympus. Robusto e resistente, il 27MG è alimentato a batteria e dotato di un ampio display LCD retroilluminato, facilmente leggibile in qualsiasi condizione. La tastiera codificata a colori consente un accesso diretto alle funzioni principali, semplificando le operazioni.

02

Transducers

In its standard configuration, the 27MG comes with the D7910 dual-element transducer, which is ideal for making thickness measurements in basic corrosion applications. For more specific needs, such as inspecting very thick, thin components or small-diameter piping, Olympus offers a full range of dual-element transducers. The 27MG also supports the Automatic Probe Recognition feature, which optimizes transducer performance by automatically applying the predefined V-path correction.
