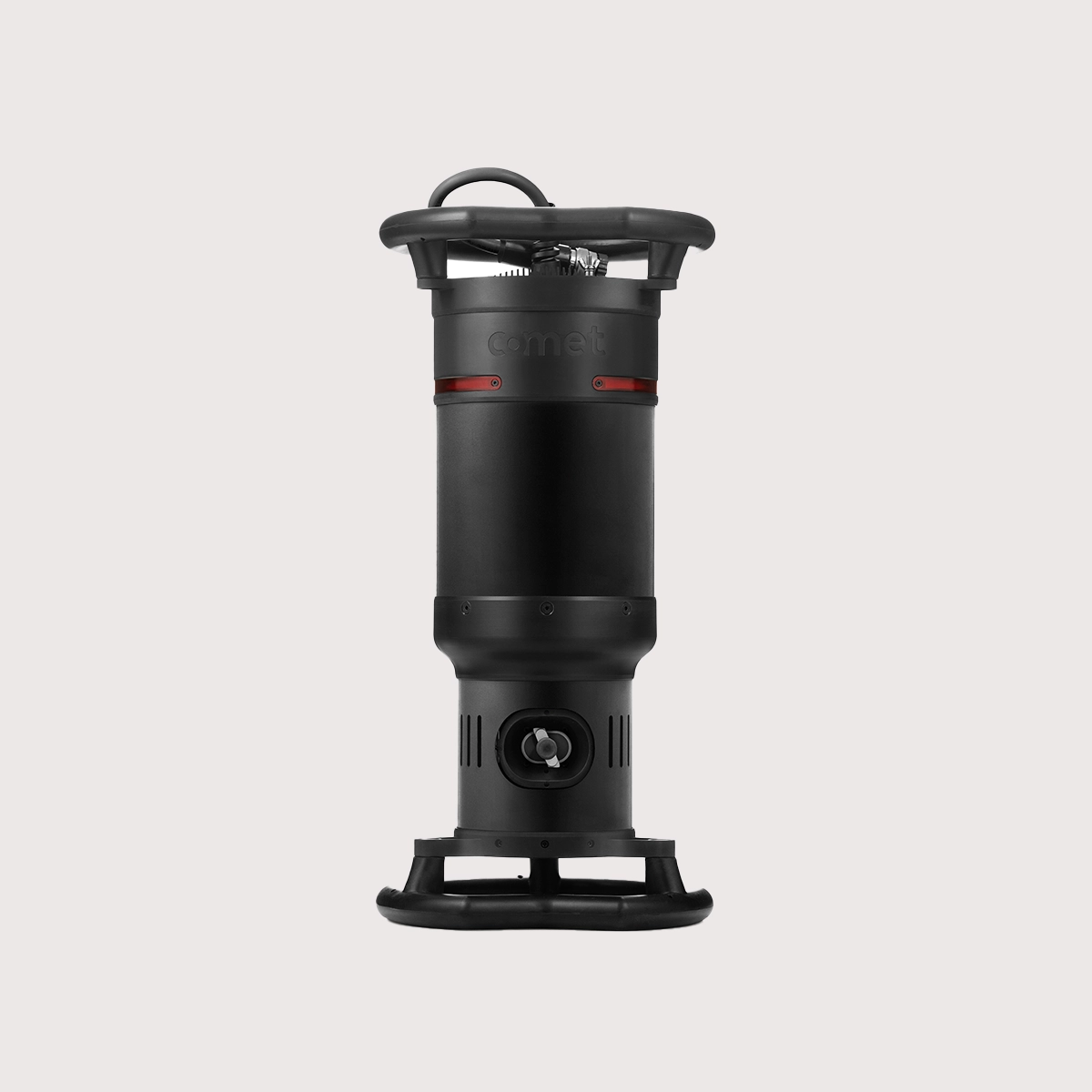

ECO 160DS

Designed and built in Denmark with advanced EVO technology, the ECO is made of lightweight composite materials and high-quality components, ensuring reliability and long life. A metal-ceramic X-ray insert is protected by a robust coating, while compliance with IP65 standards ensures optimal operation even in dusty and humid environments.

With its optimized length-to-width ratio, ergonomic design, and balanced weight of 13 kg, the ECO is easy to handle and reposition, even by a single operator. Its wide operating temperature range of -20°C to +50°C ensures reliable performance even in extreme environments. The intuitive interface further simplifies workflow.

The ECO reduces operating costs through its ease of use and increased workflow efficiency. Its small focal point allows for shorter exposure times and superior image quality, making it a cost-effective choice.

The CONTROL EVO system includes an advanced exposure calculator that ensures fast calculations, uniform results and optimized exposure times, adapting to a wide range of films, materials and settings.

The ECO supports a supply voltage from 85 to 264 VAC and a frequency from 45 to 65 Hz, allowing global use. The advanced power factor correction module ensures stable operation even under unstable voltages.

For added versatility, pipe supports and other accessories are available, making the ECO suitable for multiple applications. The system is certified according to CE standards (low voltage EN 61010-1, EMC 2004/108/EC, machinery EN 60204-1), DIN 54113 and Röntgenverordnung (RöV).
