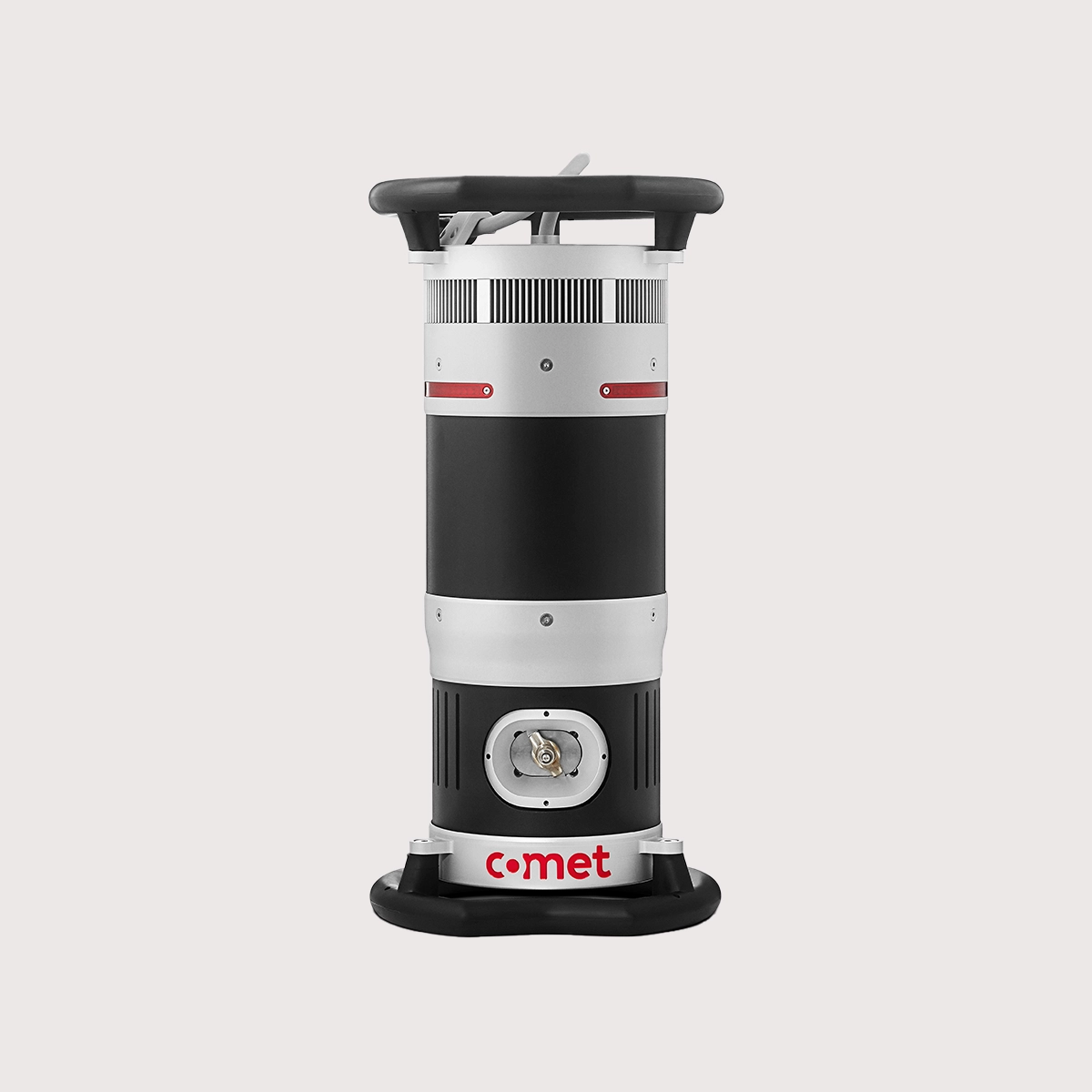

EVO 160D

The EVO 160D is designed and manufactured in Denmark with high-quality components, ensuring maximum reliability and long service life. Equipped with a metal-ceramic X-ray tube and a durable composite coating, it best protects the vital parts of the system. IP65 certified, it is fully operational even in dusty and humid environments.

With an ergonomic design and a low weight of only 22 kg, the EVO 160D is easy to handle and reposition. The wide operating temperature range of -20°C to +50°C ensures reliability even under extreme conditions. The intuitive interface improves workflow efficiency.

With a focal point of 1.0 mm and constant power of 750 W, the EVO 160D delivers high performance with short exposure times and high-resolution images. Each unit is individually tested to ensure safety and accuracy, meeting the highest international standards.

The CONTROL EVO features a sophisticated exposure calculator that ensures quick calculations, consistent results and optimized exposure times for a wide range of films, materials and settings.

The EVO 160D supports a supply voltage from 85 to 264 VAC and frequencies from 45 to 65 Hz, ensuring stable operation even under unstable power supply thanks to the advanced power factor correction module.

Accessories such as pipe supports are available to further enhance the versatility of the system. CE certified (low voltage EN 61010-1, EMC 2004/108/EC, Machinery EN 60204-1), DIN 54113, Röntgenverordnung (RöV) and N FC 74-100.
