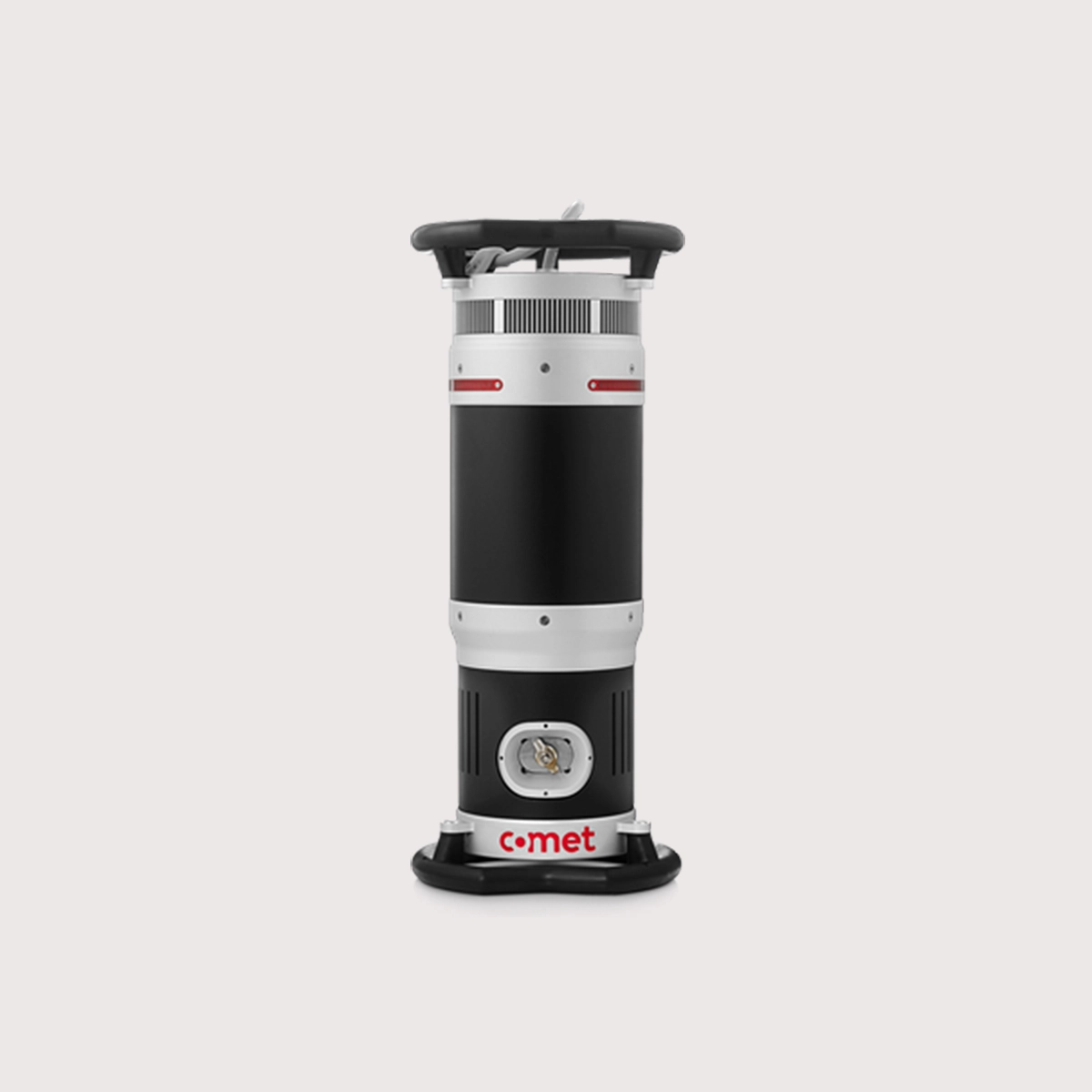

EVO 225D

Made in Denmark from high-quality components, the EVO 225D is designed for maximum reliability and long life. Equipped with a metal-ceramic X-ray tube and a durable composite coating, it best protects all vital parts of the system. IP65 certified, it is fully operational even in dusty and humid environments.

With its ergonomic design and low weight of only 26 kg, the EVO 225D is easy to handle and reposition. The wide operating temperature range of -20°C to +50°C ensures reliable operation even in extreme environmental conditions. The intuitive interface simplifies and speeds up workflow.

The EVO 225D combines a voltage of 225 kV with a constant power of 900 W, ensuring high penetration and making it ideal for medium-intensity field inspections. Each unit is individually tested to ensure maximum safety and accuracy, meeting the highest international standards.

The CONTROL EVO features a sophisticated exposure calculator that ensures fast calculations, consistent results and optimized exposure times for a wide range of films, materials and settings.

The EVO 225D supports a wide range of supply voltages, from 85 to 264 VAC and frequencies from 45 to 65 Hz, enabling global use. The advanced power factor correction module ensures stability even with unstable power supplies.

Various accessories, such as pipe supports, are available to make the system even more versatile and suitable for different applications. CE certified (low voltage EN 61010-1, EMC 2004/108/EC, Machinery EN 60204-1), DIN 54113 and Röntgenverordnung (RöV).
