COMET

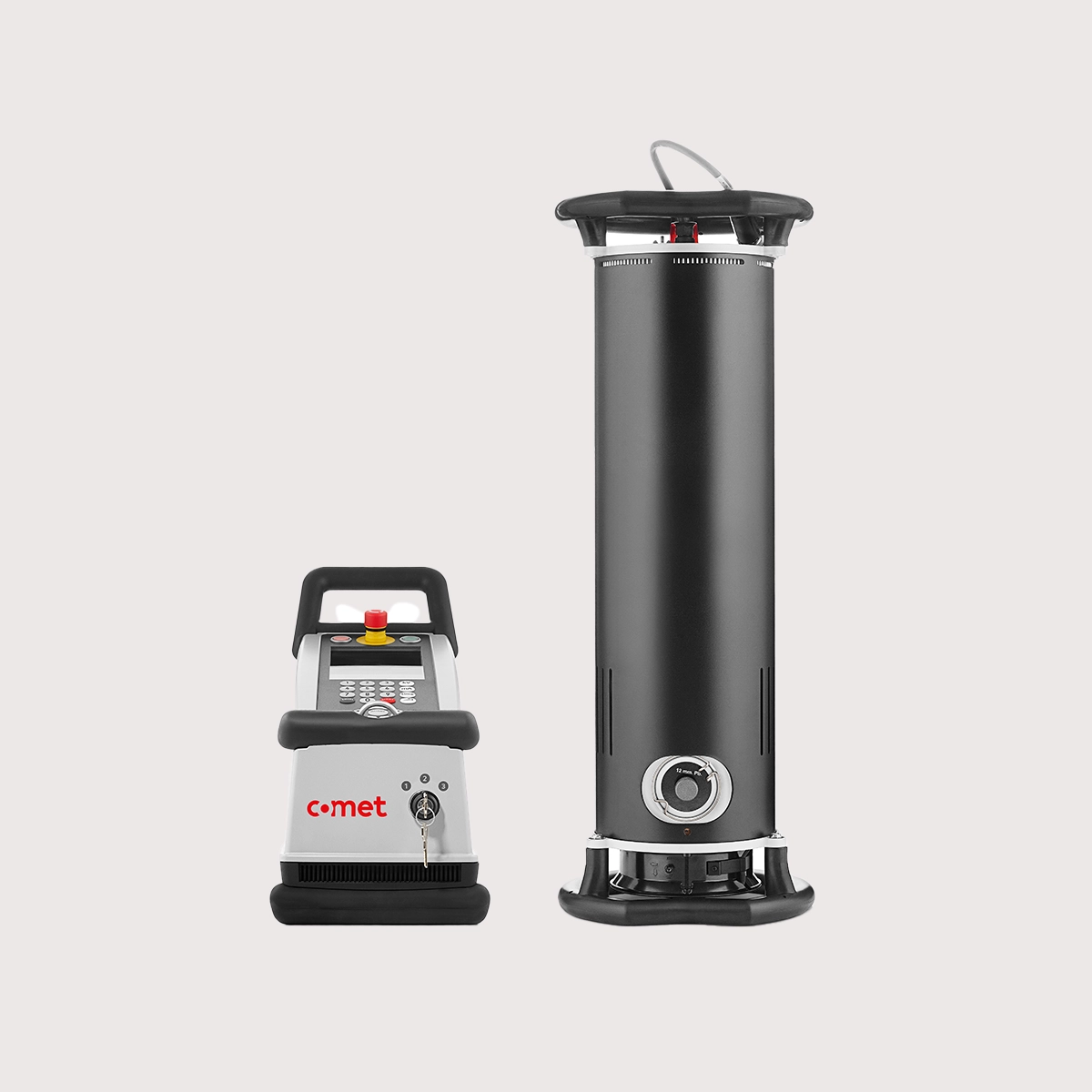

EVO 225D/1200
The Comet PXS EVO 225D/1200 portable generator offers a unique combination of 1200 watts of X-ray power and isowatt compensation down to 10 mA. The performance of the head combined with the features of the Control EVO form a highly effective system.
CE certified.
Highlights
Why choose EVO 200D/1200?
Designed to last
Made in Denmark from high-quality components, the EVO 225D/1200 is designed for maximum reliability and long life. Equipped with a metal-ceramic X-ray tube and a robust composite casing, it best protects all vital parts of the system. IP65 certified, it is fully operational even in dusty and humid environments.
Intuitive workflow
With its ergonomic design and low weight of only 28 kg, the EVO 225D/1200 is easy to handle and reposition. The wide operating temperature range of -20°C to +50°C ensures reliable operation even in extreme environmental conditions. The intuitive interface makes workflow more efficient.
High performance
The EVO 225D/1200 combines a voltage of 225 kV with a constant power of 1200 W, ensuring high penetration and making it ideal for medium-intensity field inspections. Each unit is individually tested to ensure maximum safety and accuracy, meeting the highest international standards.
Integrated exposure calculator
The CONTROL EVO features a sophisticated exposure calculator that ensures quick calculations, consistent results and optimized exposure times for a wide range of films, materials and settings.
Power supply and stability
The EVO 225D/1200 supports a wide range of supply voltages, from 85 to 264 VAC and frequencies from 45 to 65 Hz, enabling global use. The advanced power factor correction module ensures stability even under unstable power supplies.
Options and certifications
Various accessories, such as pipe supports, are available to make the system even more versatile and suitable for different applications. CE certified (low voltage EN 61010-1, EMC 2004/108/EC, Machinery EN 60204-1), DIN 54113 and Röntgenverordnung (RöV).
