COMET

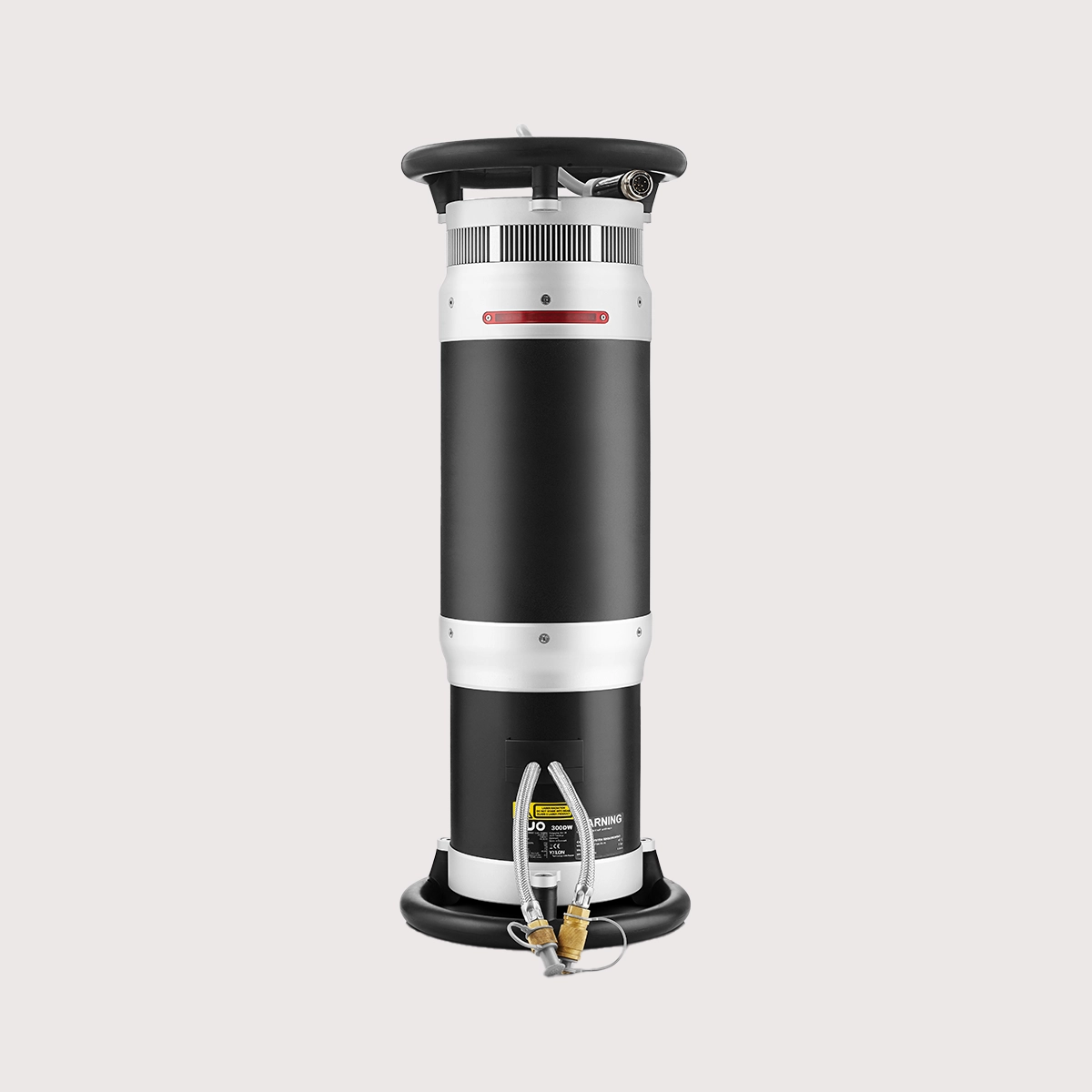

EVO 300DSW
Made in Denmark from the highest quality components and assembled with extreme precision, EVO systems ensure reliability and long life. Equipped with a metal-ceramic X-ray tube and a robust composite coating, they offer even greater protection of vital parts. With IP65 certification, they are fully operational even in dusty and humid environments.
CE Certificate
Highlights
Why choose EVO 300DSW?
Intuitive workflow
EVO directional X-ray tubes are available in a hybrid-cooled version, which combines a water-cooled anode with an air-cooled cathode. The EVO series offers models from 160 to 300 kV, all with a reduced focal point of 1.0 mm. The 225- to 300-kV variants also have a 3.0-mm focal point option, providing versatility for a wide range of applications.
High Performance
The hybrid cooling system enables 24/7 continuous exposures of up to 900 W of power in environments with temperatures up to +30°C. This makes the EVO Water-Cooled series perfect for integration into continuous-cycle production lines, confined spaces without ventilation, or extreme weather conditions that require prolonged exposures.
Integrated exposure calculator
The CONTROL EVO includes a sophisticated exposure calculator that ensures fast calculations, consistent results and optimized exposure times for a wide range of films, materials and settings.
Power supply and stability
The power supply supports voltages from 85 to 264 VAC with frequencies from 45 to 65 Hz, ensuring stable operation even under unstable power supplies, thanks to the advanced power factor correction module.
Options and certifications
Accessories such as a water cooling system with flow and temperature monitoring are available, as well as an optional cathode cooling module. The CONTROL EVO is also available in a water-cooled version, perfect for integration in environments without ventilation.nCertifications: CE (low voltage EN 61010-1, EMC 2004/108/EC, Machinery EN 60204-1), DIN 54113 and Röntgenverordnung (RöV).Certificazioni: CE (bassa tensione EN 61010-1, EMC 2004/108/EC, Machinery EN 60204-1), DIN 54113 e Röntgenverordnung (RöV).
