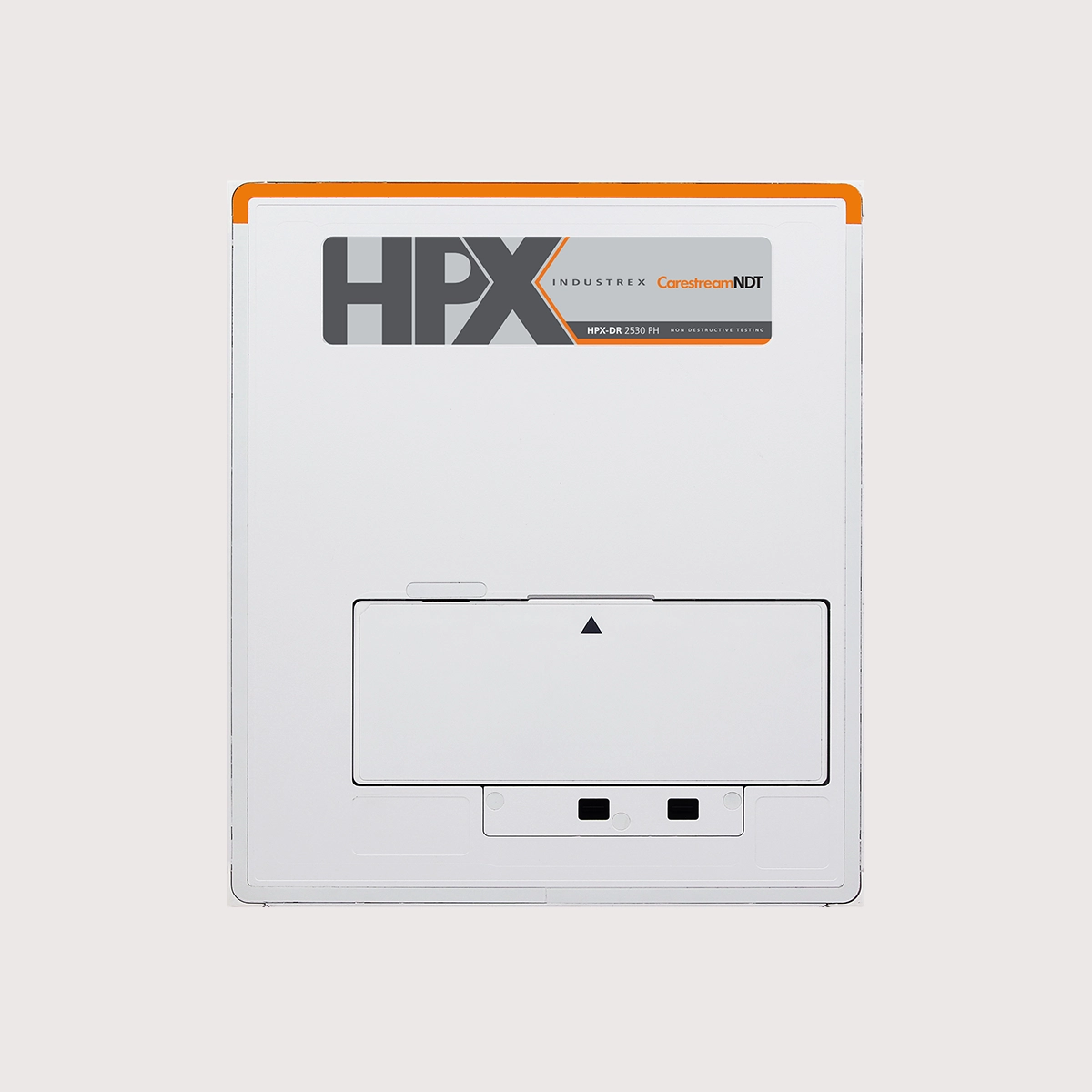

HPX-DR 2530 PH Non-Glass Detector, Compact

CARESTREAM

HPX-DR 2530 PH Non-Glass Detector, Compact

The HPX-DR 2530 PH Non-Glass detector offers high-resolution imaging features and a design that eliminates glass for maximum durability against the rigors of NDT activities.

Download brochure
Contact us
01
Active area size
250 mm × 300 mm
02
Size
282 mm x 332 mm x 14,7 mm
03
Weight
3,1 kg
04
Housing material
Aluminum
05
Load limit
170,1 kg
06
Conversion screen
GOS PLUS
07
Pixel pitch
(μm) 145
08
Scanning method
Progressive
09
Conversion
A/D (bit) 16
10
Image resolution
3,6 lp/mm

Highlights

Advantages of the HPX-DR 2530 PH Non-Glass Detector, Compact

01

HPX-DR 2530 PC Non-Glass, Compact and Durable Detector

The HPX-DR 2530 PC Non-Glass detector is designed for those looking for reliable, high-speed NDT imaging in a compact, durable package. With a resolution of 145 μm and a low exposure dose, it accelerates the image acquisition process, improving analysis and reporting. The glass-free design uses a stronger material, eliminating the risk of costly repairs. Thanks to its compact size, it is ideal for imaging in tight spaces or between close objects, ensuring maximum versatility.

02

A complete solution for CR and DR

All Carestream NDT CR and DR products operate with INDUSTREX software, an all-in-one platform that eliminates the need to purchase expensive add-on modules. The software offers advanced tools for image analysis, file management and archiving, ensuring an efficient and integrated workflow. With INDUSTREX, users can make the most of both technologies, optimizing exposure time and improving imaging quality without the need for additional investments.

01

HPX-DR 2530 PC Non-Glass, Compact and Durable Detector

The HPX-DR 2530 PC Non-Glass detector is designed for those looking for reliable, high-speed NDT imaging in a compact, durable package. With a resolution of 145 μm and a low exposure dose, it accelerates the image acquisition process, improving analysis and reporting. The glass-free design uses a stronger material, eliminating the risk of costly repairs. Thanks to its compact size, it is ideal for imaging in tight spaces or between close objects, ensuring maximum versatility.

02

A complete solution for CR and DR

All Carestream NDT CR and DR products operate with INDUSTREX software, an all-in-one platform that eliminates the need to purchase expensive add-on modules. The software offers advanced tools for image analysis, file management and archiving, ensuring an efficient and integrated workflow. With INDUSTREX, users can make the most of both technologies, optimizing exposure time and improving imaging quality without the need for additional investments.
