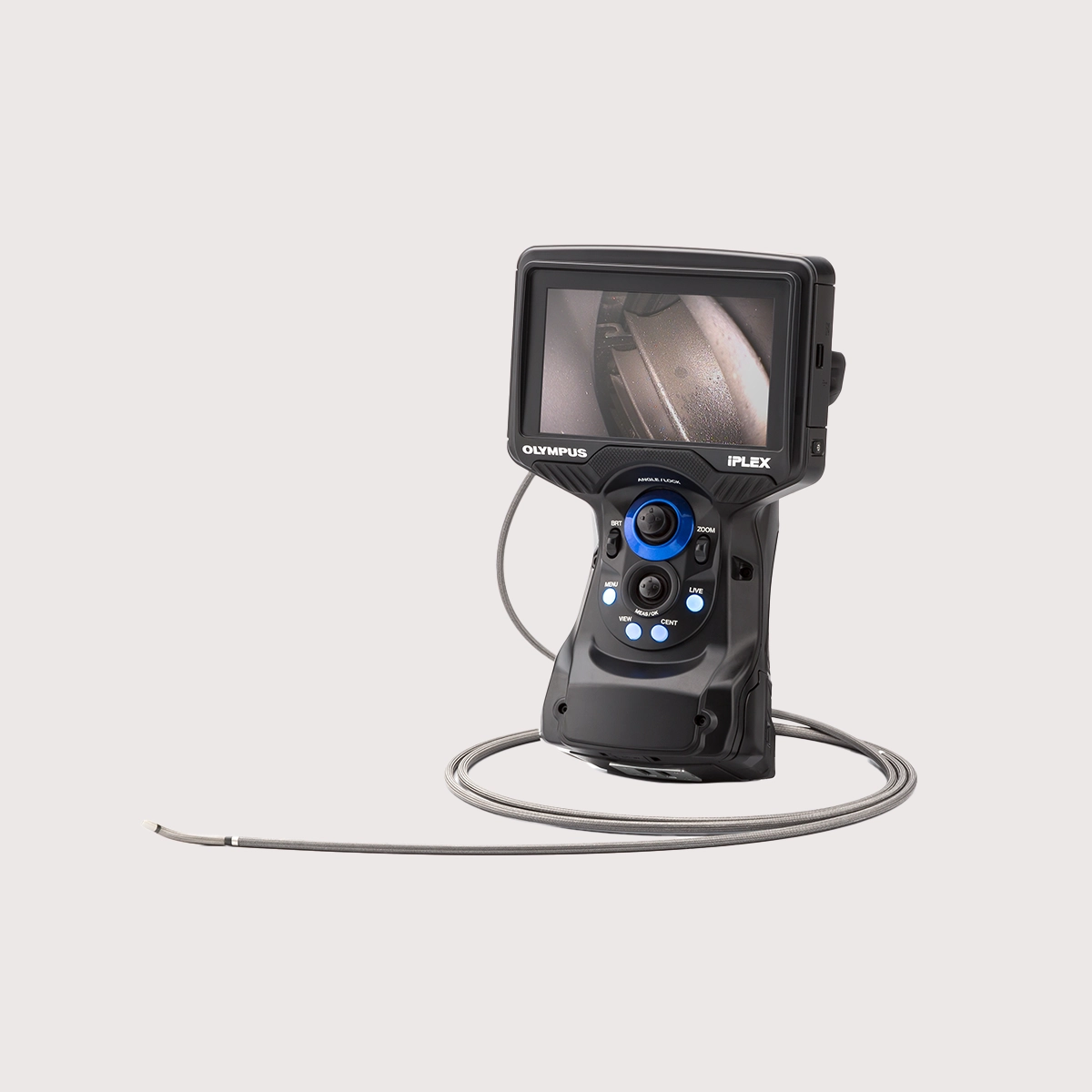

IPLEX G Lite/G Lite W

The IPLEX G Lite industrial videoscope offers advanced imaging capabilities in a compact, rugged chassis, ideal for complex inspections that require a lightweight, easy-to-handle device. Thanks to its image quality and ease of use, it guarantees optimal results in any remote visual inspection application.

The dedicated version of the IPLEX G Lite videoscope combines portability and cutting-edge imaging technologies, making it easier to work in confined spaces such as the nacelles of wind turbines. The compact design and powerful integrated functions allow you to perform inspections faster and more effectively.

Designed to be carried anywhere, the IPLEX G Lite videoscope weighs just 1.15 kg, while the IPLEX G Lite-W version reaches 1.16 kg. Despite their lightness, both models offer a rugged construction that is IP65 certified and tested to MIL-STD standards. The interchangeable endoscopes are available in different lengths, while the ergonomic design allows for comfortable use even in difficult conditions.

The compact videoscope integrates advanced imaging technologies usually found in larger devices. The LED lighting is twice as powerful as previous models, while the noise reduction algorithm improves visibility in dark areas. 60 fps video capture ensures smooth recordings, while UV and IR lighting options expand inspection capabilities to detect details not visible to the naked eye.

TrueFeel™ articulation allows precise movements to quickly reach the area to be inspected. The sensitive joystick ensures optimal control, while the simultaneous recording of images and videos simplifies documentation. Features like adding bookmarks and automatically recording the last 30 minutes ensure an efficient and uninterrupted workflow.

Using a USB wireless LAN adapter, images can be shared in real time with other operators for faster diagnosis. Secure file transfer to computers occurs via the IPLEX desktop app, ensuring efficient storage of inspection data.

The sealed anti-oil terminal allows a clear view even in environments with the presence of fluids, reducing the time required for cleaning and improving operational efficiency. The resistant and IP65 certified structure allows the IPLEX G Lite-W videoscope to operate in extreme contexts, protecting the endoscope from possible damage when inserted into confined spaces.

Thanks to specially designed optics, the IPLEX G Lite-W videoscope allows you to closely examine critical components such as bearings and gears, while ensuring a clear view of defects in larger spaces. The LED guide tube facilitates image acquisition in dark environments, while the semi-flexible design allows for precise positioning of the endoscope.

Weighing just 1.16 kg, the videoscope is easily transportable even in complex environments such as the nacelles of wind turbines. Thanks to a hook and a magnetic arm, it can be fixed in the most comfortable position for the operator. The responsive touch screen and ergonomic design allow for easy use even with gloves, while the smooth coating of the endoscope simplifies cleaning after use.

By combining optical adapters with 3DAssist™ software, the IPLEX G Lite videoscope enables advanced three-dimensional modeling and precise comparative measurements. This technology reduces inspection times and improves the quality of results, offering a complete solution for the most complex visual analyses.
